Concealed ducted fan coils
Ceiling concealed ducted fan coil units
Concealed units for ducted air distribution where the fan coil itself should remain out of sight.
EVOHX product range
C
o
The technical information on this page is based on the supplied MECO 2025 Fan Coil Unit catalogue. Final model, performance and configuration should be confirmed with EVOHX for the project.
Selection points
✓2-tube and 4-tube configurations in selected ranges
✓Optional fresh-air box on selected models

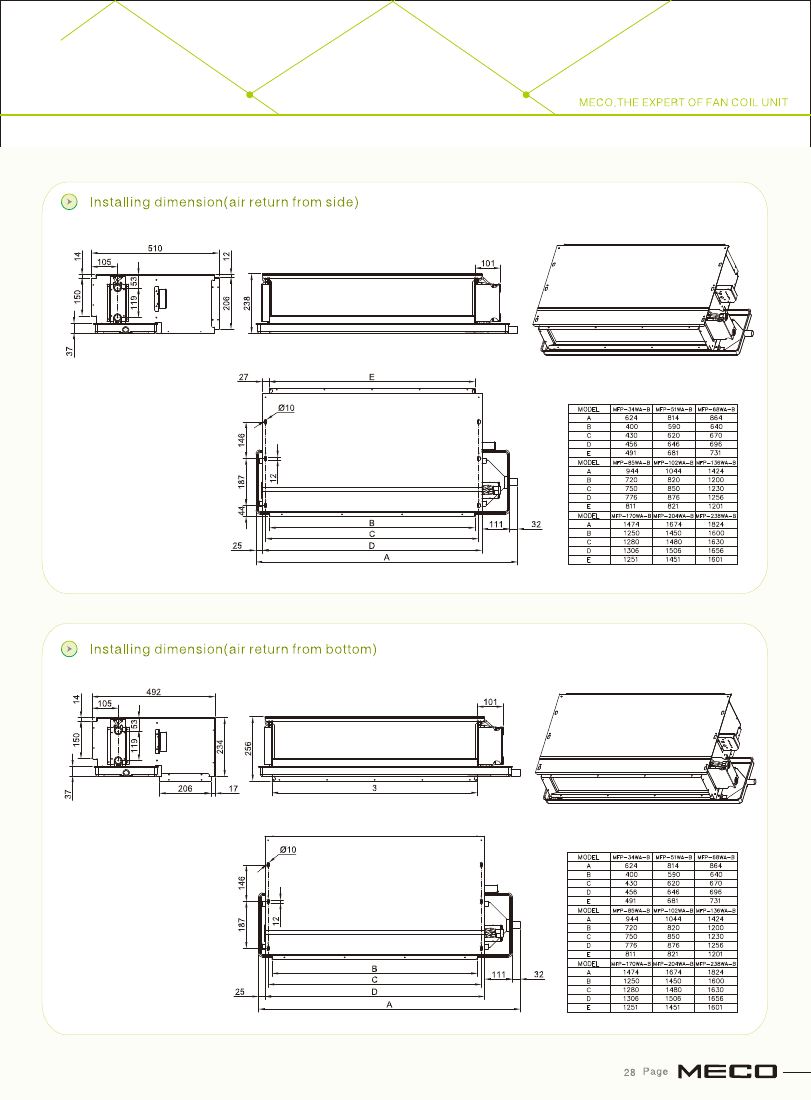

✓Different return-air arrangements
✓Designed around ducted supply and return
Technical reference
Supplier catalogue information.
These pages retain the supplier's technical presentation so we can replace the imagery and refine the EVOHX presentation as the range is finalised.

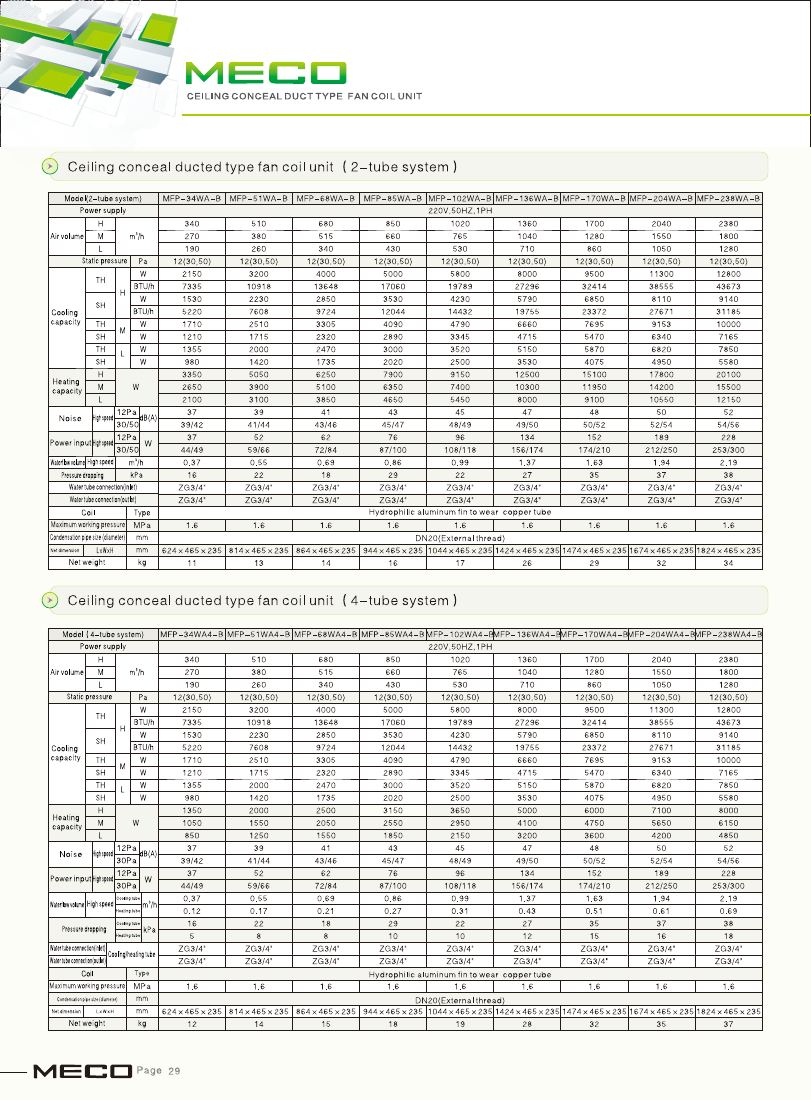

Important: Catalogue performance tables are shown as source material. Do not use a catalogue value for final system sizing without confirming the operating conditions, water temperatures, airflow, pressure and model selection.
Need help selecting a unit?
Tell us about the space.
Give us the room size, application, heating/cooling requirement, installation position and any duct or grille constraints. We can then work through the appropriate fan-coil configuration.
Request this product range
Add the range to your EVOHX quote list, then send the project details.
