Vertical / ultra-thin fan coils
Ultra-thin and vertical concealed fan coil units
Slim hydronic terminals for installations where space, appearance or vertical placement is important.
EVOHX product range
U
l
The technical information on this page is based on the supplied MECO 2025 Fan Coil Unit catalogue. Final model, performance and configuration should be confirmed with EVOHX for the project.
Selection points

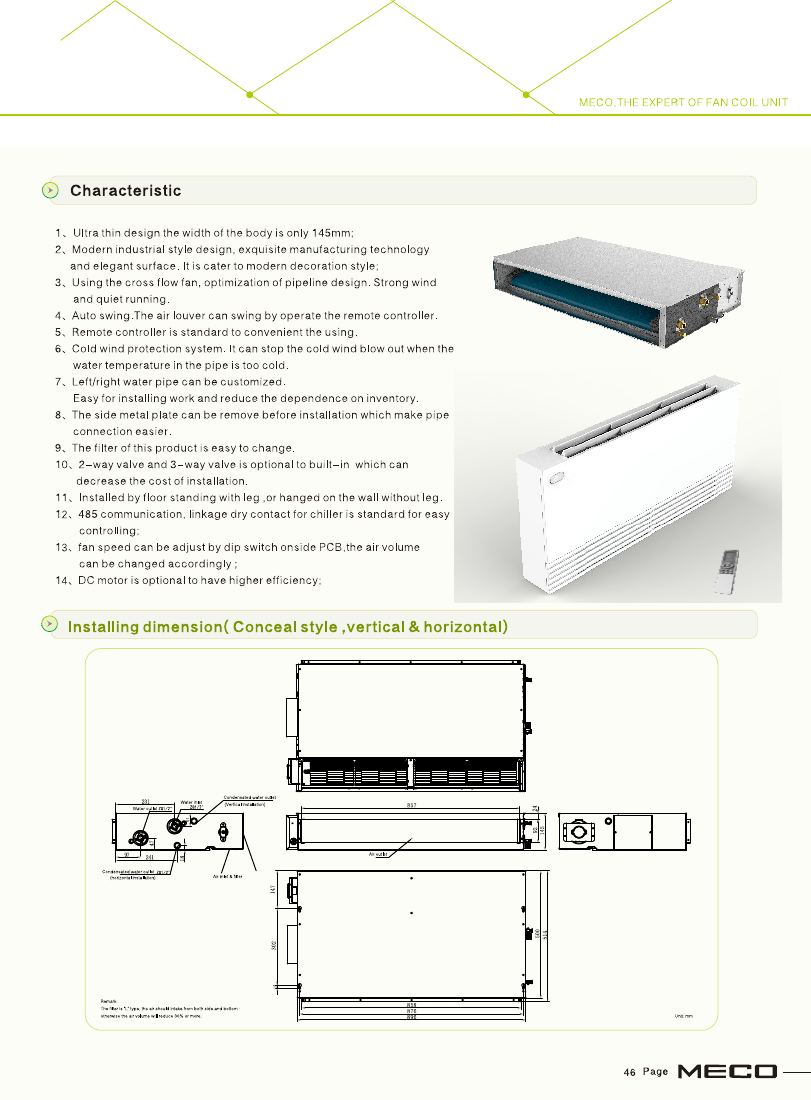

✓Ultra-thin body on selected models

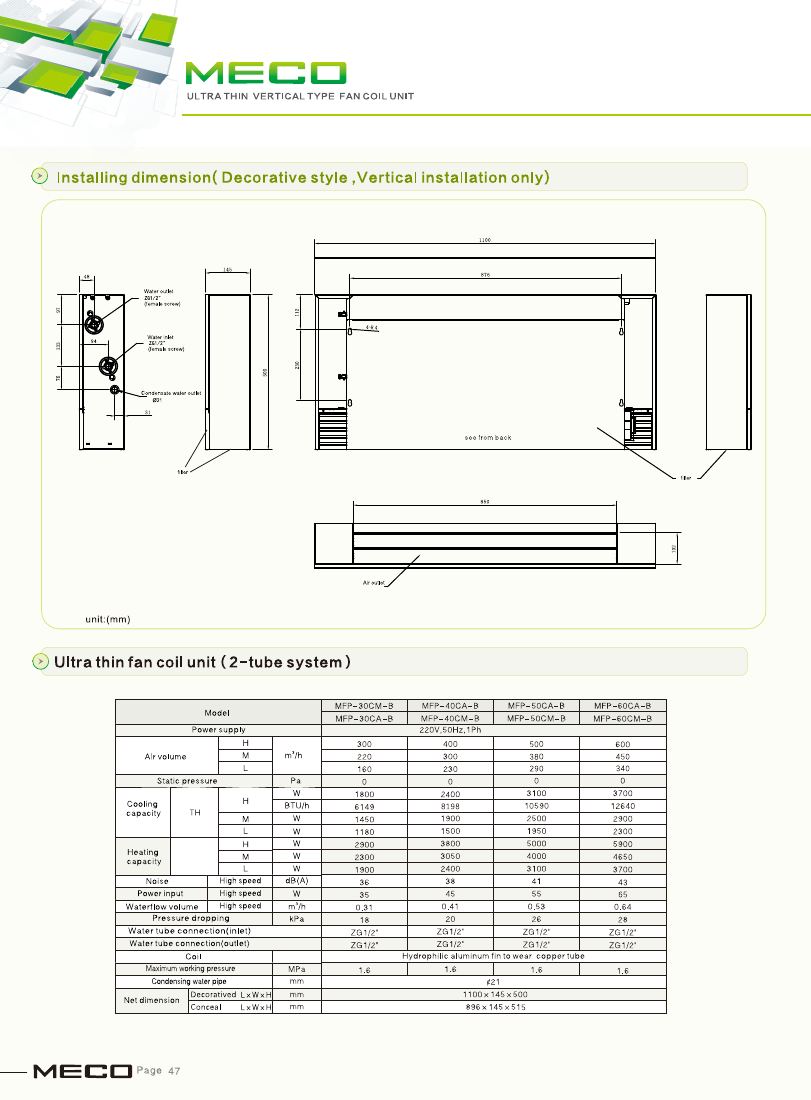

✓Concealed and decorative installation options

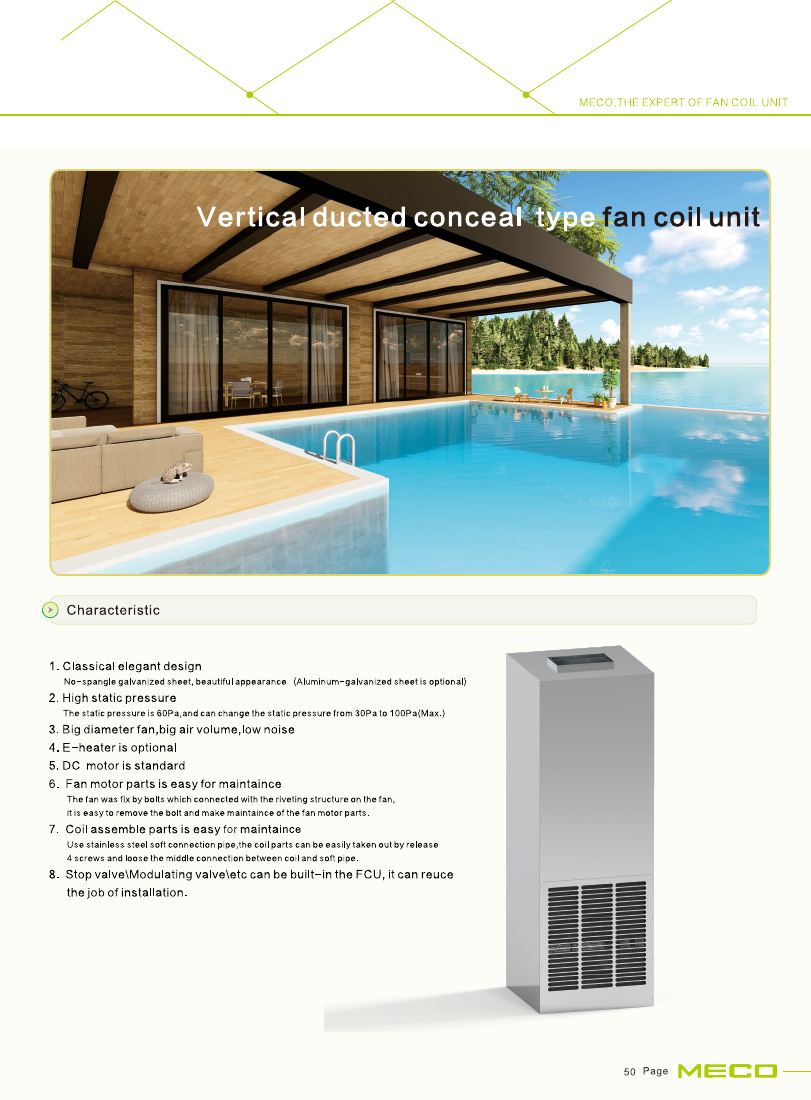

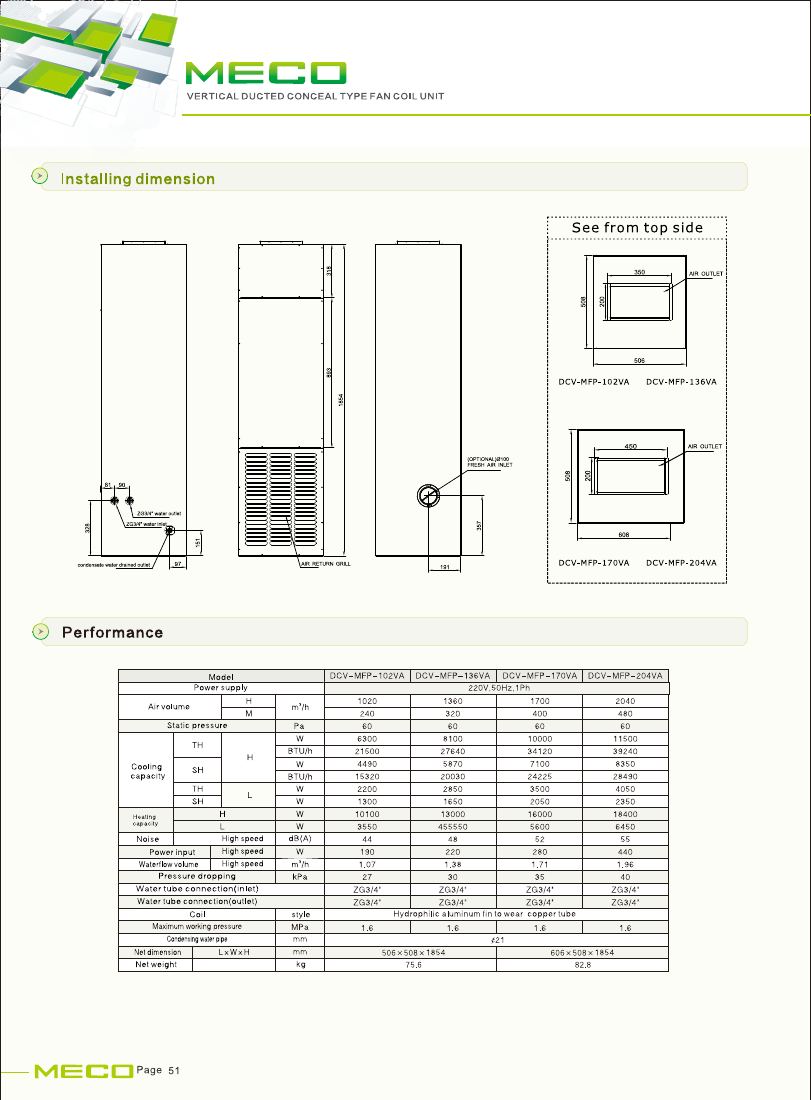

✓Vertical concealed configurations
✓Cold-wind protection and optional controls on selected models

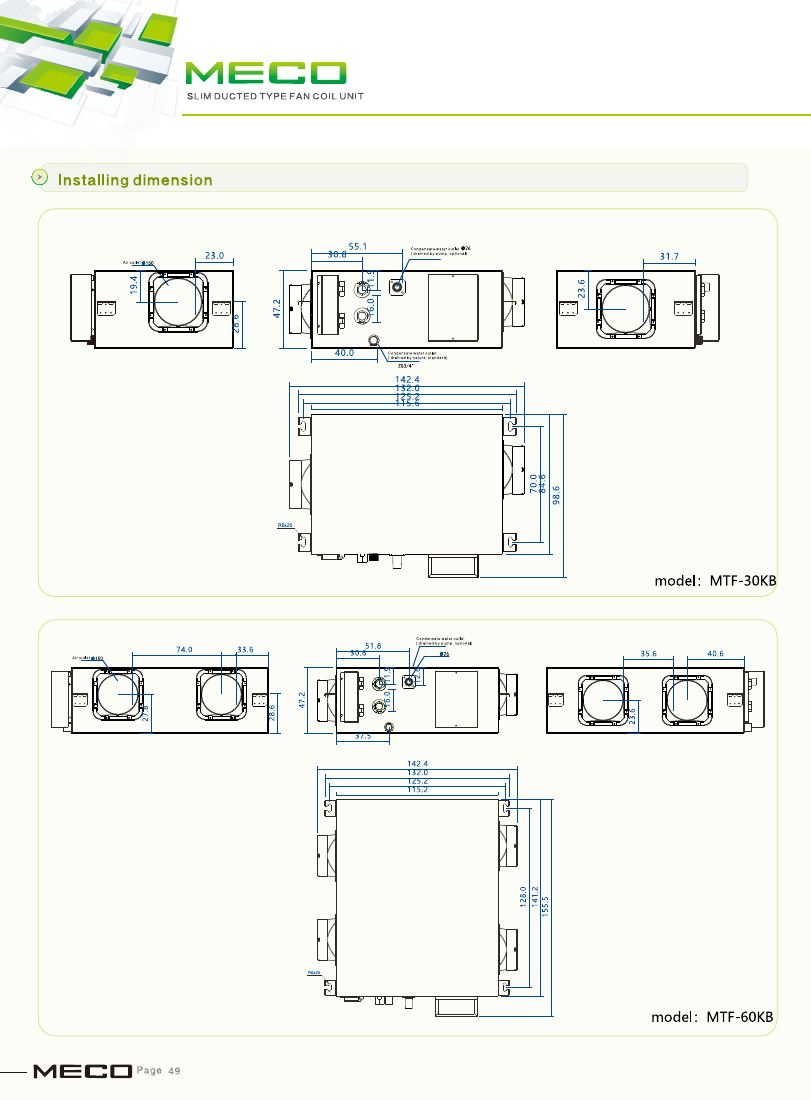

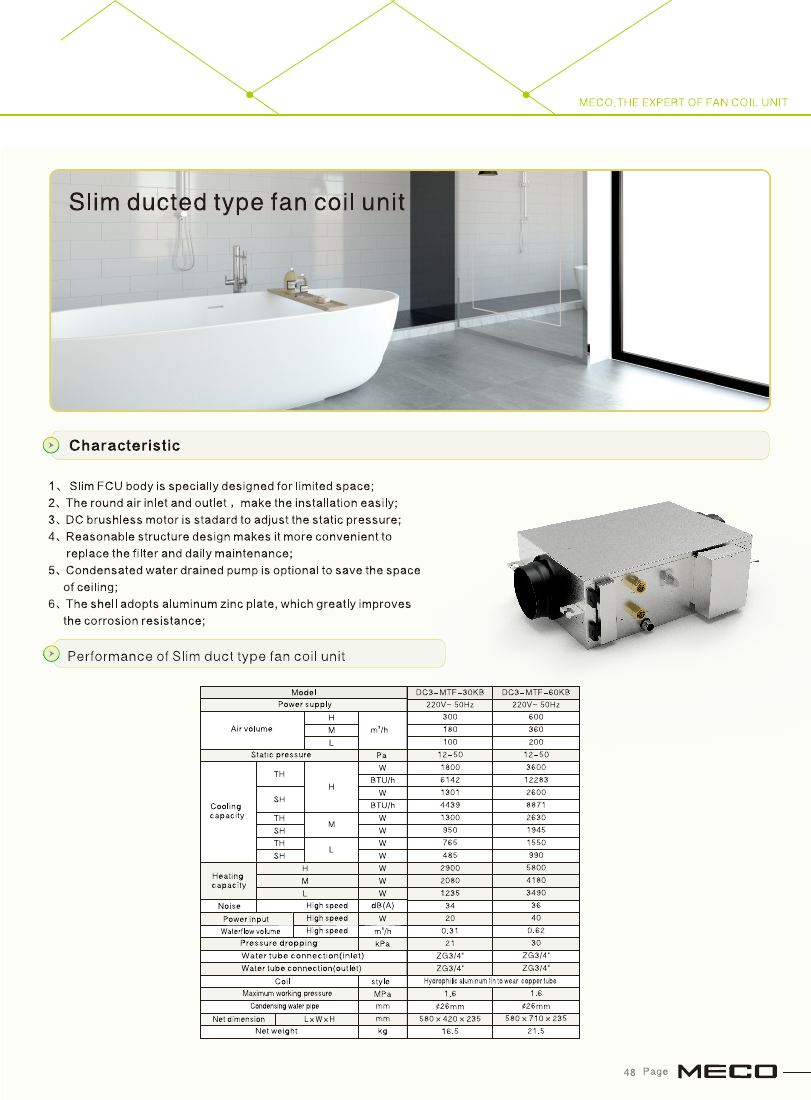

Technical reference
Supplier catalogue information.
These pages retain the supplier's technical presentation so we can replace the imagery and refine the EVOHX presentation as the range is finalised.
Important: Catalogue performance tables are shown as source material. Do not use a catalogue value for final system sizing without confirming the operating conditions, water temperatures, airflow, pressure and model selection.
Need help selecting a unit?
Tell us about the space.
Give us the room size, application, heating/cooling requirement, installation position and any duct or grille constraints. We can then work through the appropriate fan-coil configuration.
Request this product range
Add the range to your EVOHX quote list, then send the project details.
